Digital Contoller Instructions

the ultimate digital heater controller available in australia

download controller instructions here

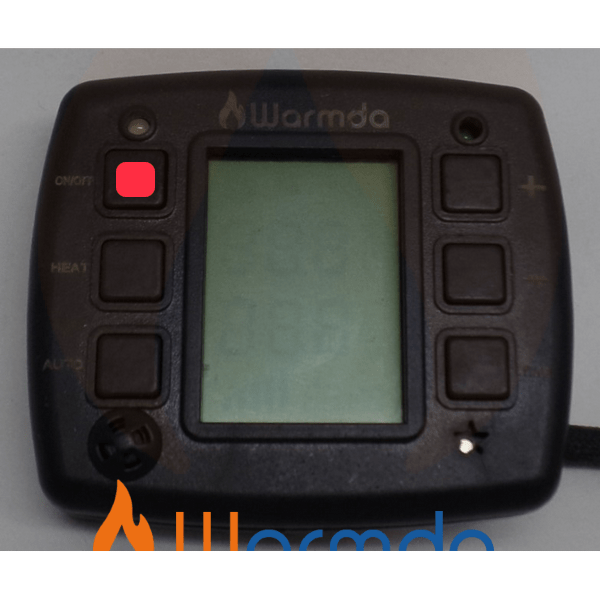

Button Discription

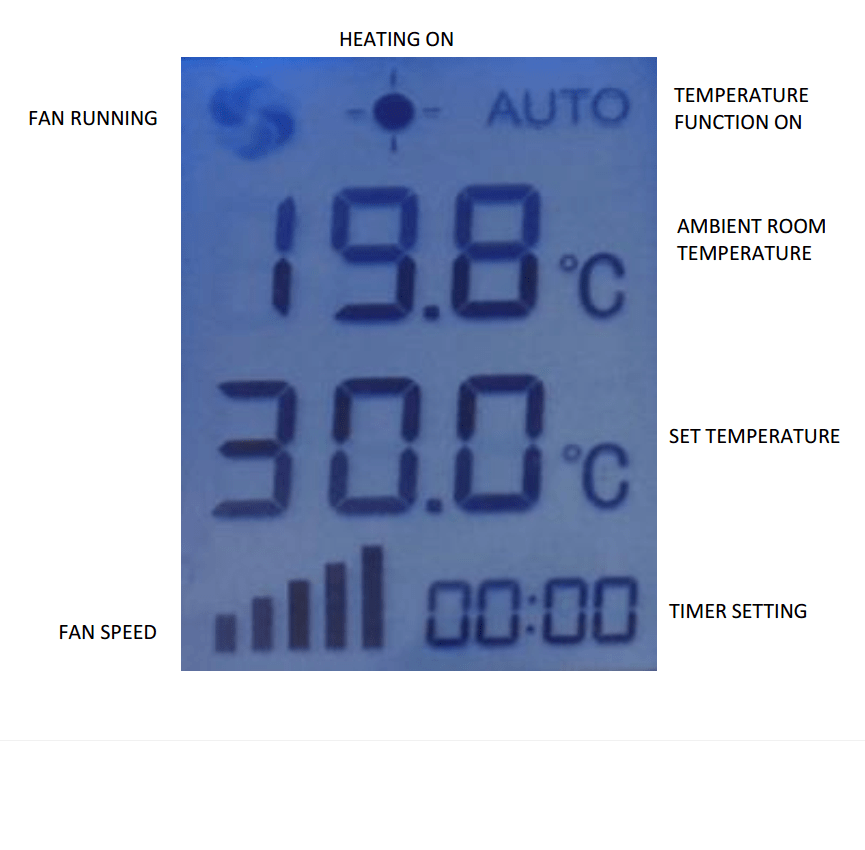

Display Description

Steps to operate the Warmda Digital Controller :



1) Turn the Heater into Standby mode.

Press the ON/OFF button.

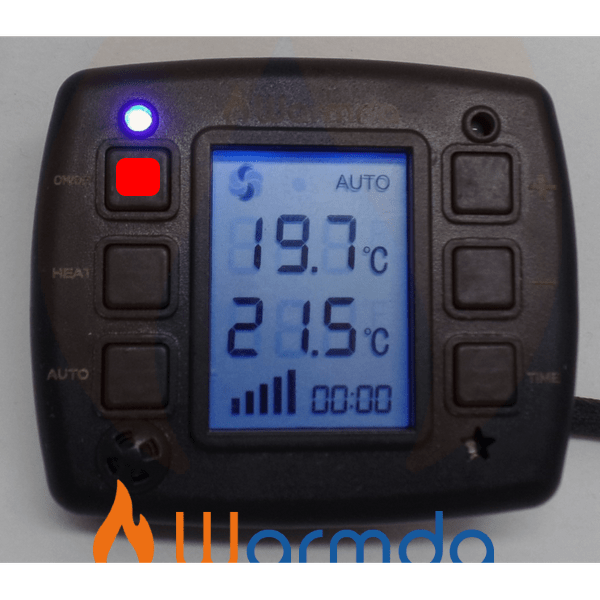

2)Depress the ON/OFF button for 2 seconds.

This turns the heater fan on.

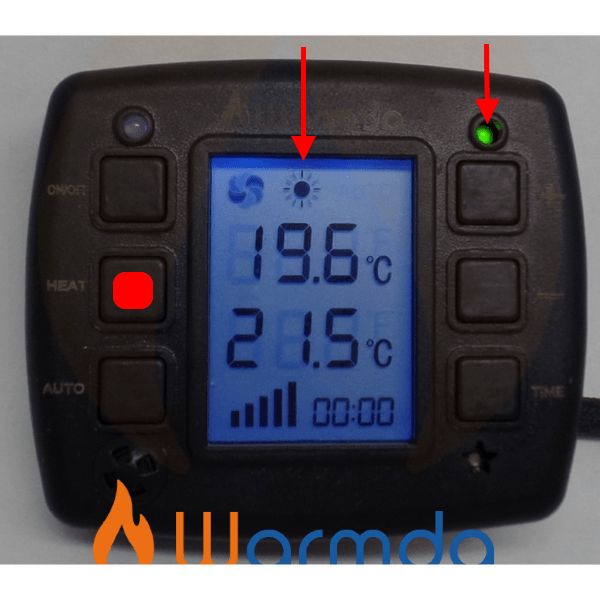

3)Press the Heat Button.



4)If you don't wish to use the AUTO temperature function you can run the heater by fan speed only.

Press minus (-) button to take the heater fan speed down to a lower setting.

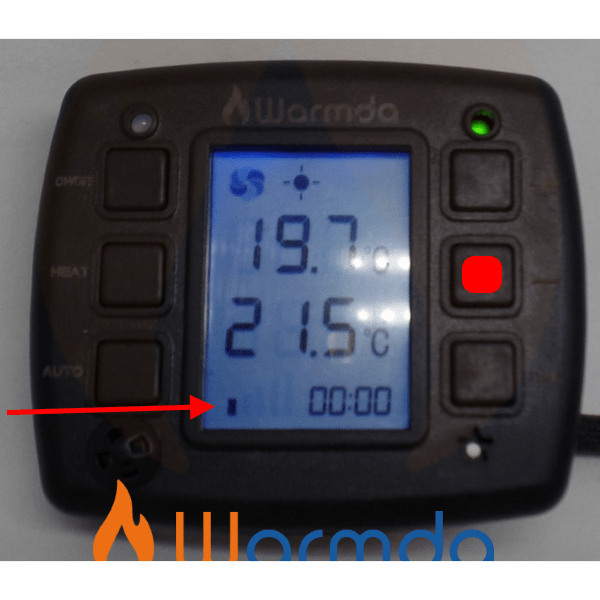

Setting 1 shown.

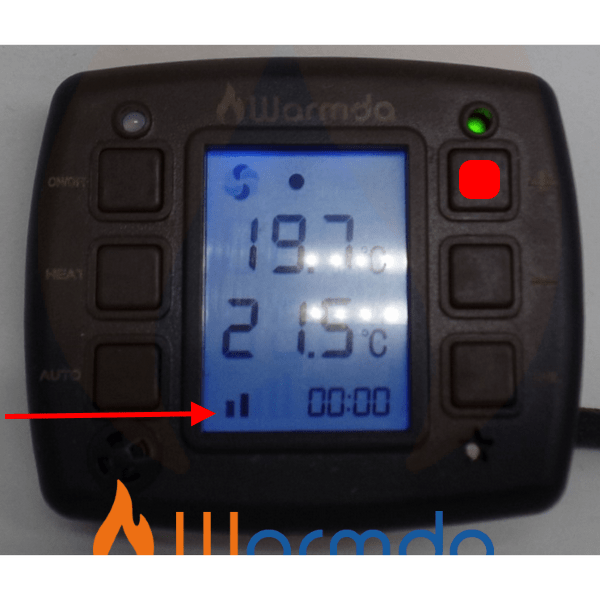

Heater fan set to 2nd fan speed.

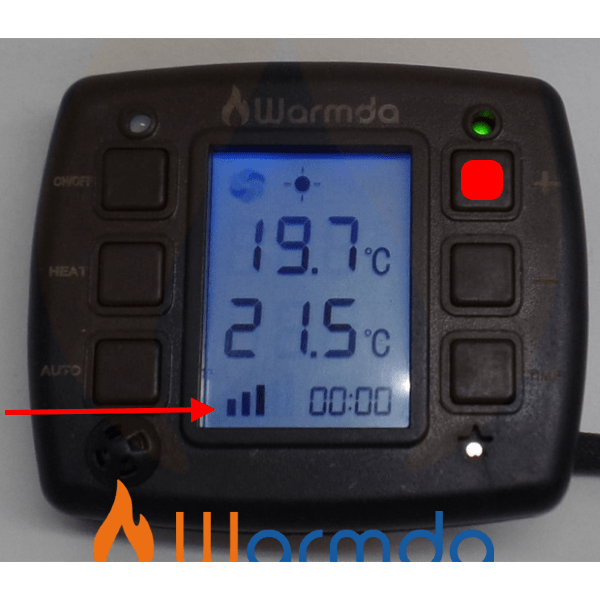

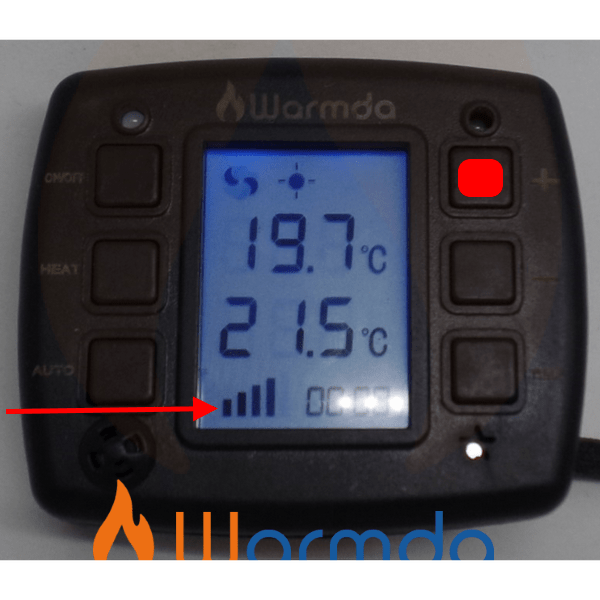

Heater fan set to 3rd fan speed.



Heater fan set to the 4th fan speed setting.

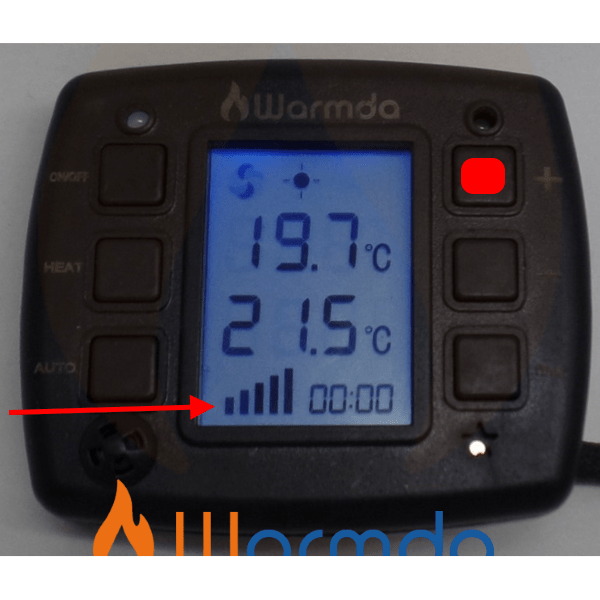

Heater fan set to setting 5, maximum speed, maximum heat.

Automatic Temperature Mode - the preferred mode:



Automatic temperature setting.

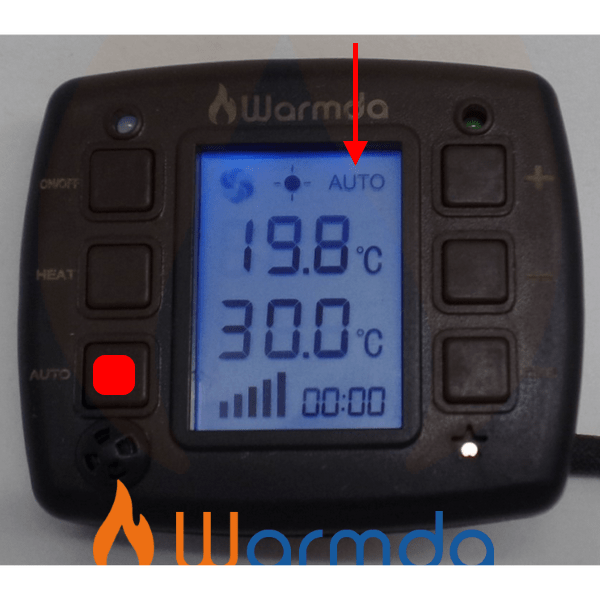

Press Auto button.



Press the PLUS (+) button to increase the temperature you would like to achieve.

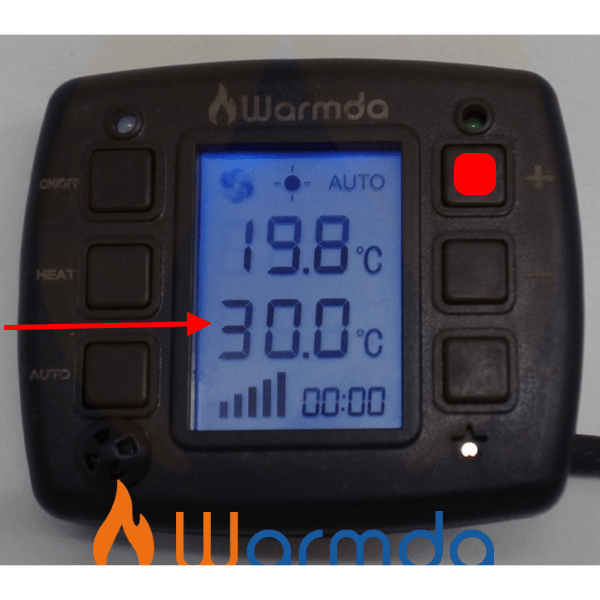

Maximum temperature of 30 degrees shown.



Press the MINUS (-) button to decrease the temperature.

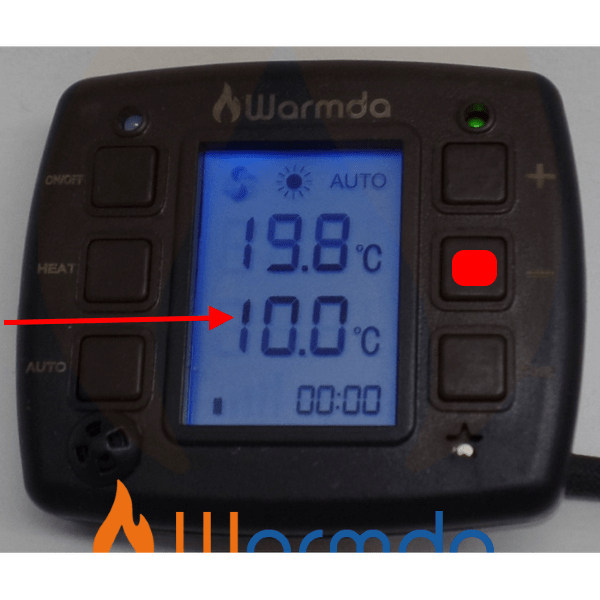

Minimum temperature of 10 degrees shown.

Timer Function:

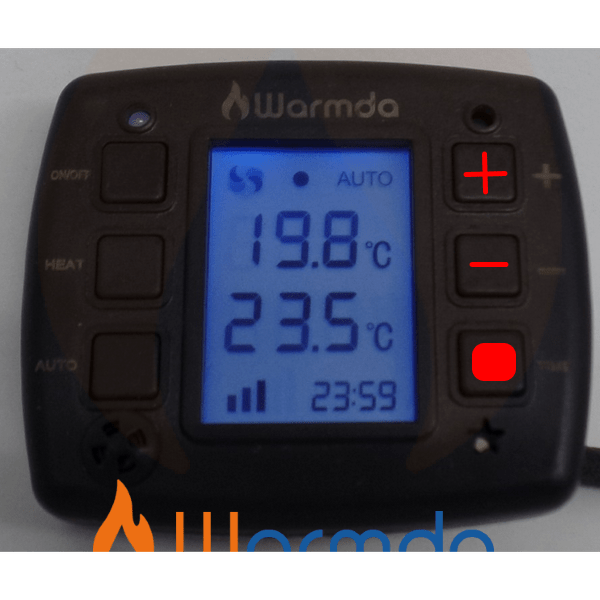

Timer function.

If set whilst the heater is in standby mode, the heater will countdown and turn on.

If timer is set whilst the heater is running, the timer will countdown and turn the heater off.

Press the TIMER button, the hours will flash on the display. Press the PLUS (+) or MINUS (-) button to set the hours.

Press the TIMER button again, the minutes will flash on the display. Press the PLUS (+) or MINUS (-) button to set the hours.

Press the TIMER button to lock the timer and the timer will start counting down.

To turn off the Heater

Press the ON/OFF button for 2 seconds.

The heater will go into its shutdown mode and prepare itself to shutdown.



Emergency Shutdown: Press and hold the ON/OFF for 15 seconds - this is not the recommended way to shutdown the heater.
